CAP-TX elastic sealing cap
1. scope
For accessory products
2. characters
Main ingredients: PVC
3. save the environment
Storage in a cool, dry, well-ventilated place.

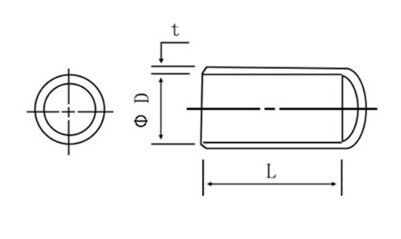

Product drawings ：
Size
φDLength
（The longest）Wall thickness
(t)Size
φDLength
（The longest）Wall thickness
(t)1.5 10 0.8 14.0 40 1.2 1.8 10 0.8 15.0 50 1.2 2.0 15 0.8 17.5 35 1.2 2.3 10 0.8 18.0 45 1.5 2.5 15 0.8 20.0 50 1.5 2.8 10 0.8 22.0 50 1.5 3.0 15 0.8 24.0 40 1.5 3.5 20 0.8 25.0 25 1.5 3.8 25 0.8 26.0 30 1.5 3.9 15 0.8 27.0 50 1.5 4.0 20 0.8 28.0 30 1.5 4.5 30 0.8 29.0 50 1.5 5.0 35 0.8 30.0 30 1.5 5.5 30 0.8 32.0 30 1.5 6.0 40 0.8 34.0 40 1.5 6.5 40 0.8 35.0 50 1.5 7.0 40 0.8 36.0 40 1.5 7.5 45 0.8 38.0 40 2.0 8.0 45 1.0 40.0 40 2.0 8.5 40 1.0 42.0 40 2.0 9.0 35 1.0 44.0 40 2.0 9.5 35 1.0 45.0 40 2.0 10.0 45 1.0 46.0 40 2.0 11.5 35 1.0 48.0 40 2.0 12.0 45 1.2 50.0 40 2.0 13.0 40 1.2
