V型护套
产品概要：
- 产品特性
- 产品规格
- 技术数据
- Video
-
Product introduction:
1. The scope of
For general product specifications
2. Characters
Main ingredients: PVC
3. Products save environment
Storage in a cool, dry, well-ventilated place.

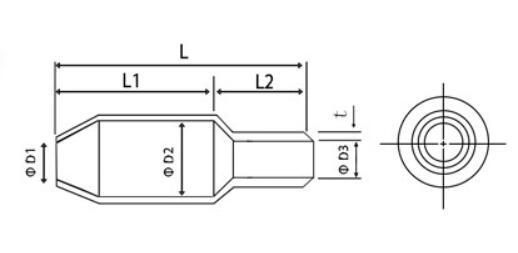

Product drawings ：
Name D1 D2 D3 L L1 L2 t PB-V-1.25 2.8 3.3 3.1 13 6 7 0.6 PB-V-2 3.3 4.5 3.7 14 7 7 0.7 PB-V-3.5 4.2 5.7 4.1 17 9 8 0.8 PB-V-5.5 4.2 5.7 5.2 17 9 8 0.8 PB-V-8 6.2 7.2 6.2 19 10 9 1 PB-V-14 7.5 10 8 25 14 11 1.1 PB-V-22 10.5 12 9.5 30 15 15 1.2 PB-V-38 12.5 14 11.8 34 17.5 16.5 1.5 PB-V-60 15 16.8 13.5 39 20 19 1.5 PB-V-80 17 19 16 47 25 22 1.6 PB-V-100 19 22 18 54 30 24 1.7 PB-V-125 21 24 20 57 32 25 1.8 PB-V-150 23 24.5 22 65 35 30 2 PB-V-200 27 32 24 65 35 30 2 PB-V-250 29 38 26.5 77 35 42 2.5 PB-V-325 29 38 29 77 37 40 2.5
